Openhouse P90F PENSILINA

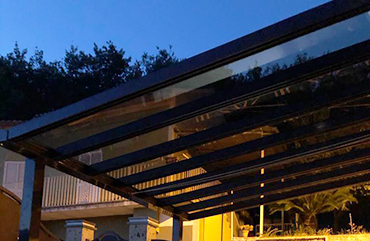

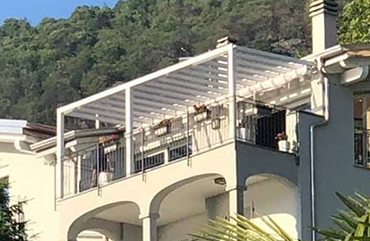

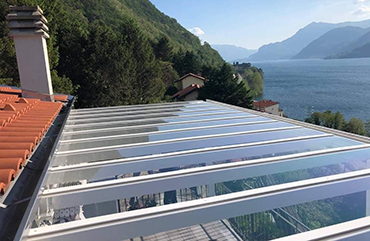

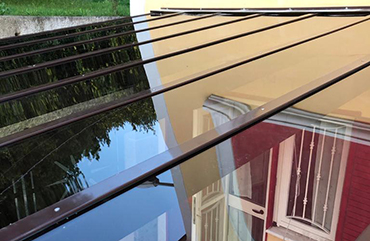

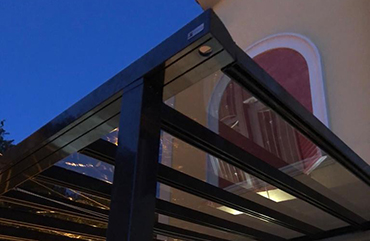

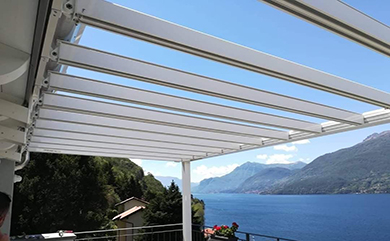

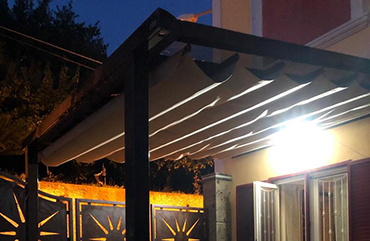

LaP90F PENSILINAIt is a shelter with a 5 mm compact polycarbonate roof or 10 mm multiwall polycarbonate cover. It is possible to install a riviera model curtain under the polycarbonate in the same guides. All the profiles (crosspieces and guides) are made of painted extruded aluminum and the accessories are in painted die-cast aluminum.
The P90F series is structured by a sequence of profiles, with a distance between them of 52 cm
and can reach unlimited widths and a maximum overhang of 6 meters.


Shelter composed of side by side modules:

Minimum from:
Width cm 52
Projection 600 cm
The width increases by 52 cm for each module added with Compact Polycarbonate
The width increases by 62 cm for each module added with Alveolar Polycarbonate

DATA SHEET

Download the PDF

Wind resistance
UNI EN 13561
Technical class 6

Resistance to water pockets
UNI EN 1933
Technical class 2
Measurements
Width Cm 430
Projection Cm 500

Wind resistance table
