BG 130

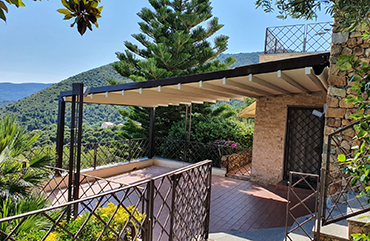

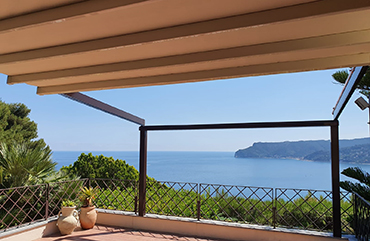

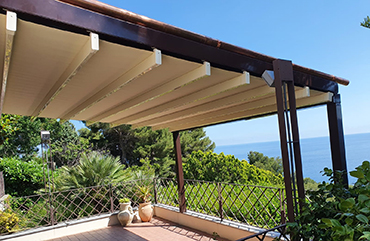

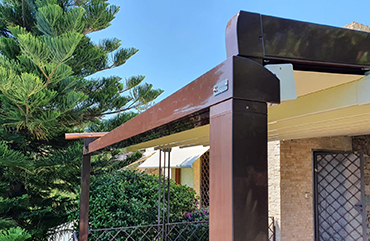

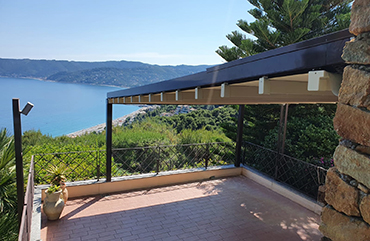

La BG 130 Entirely made with painted aluminum profiles and with pre-tensioned blackout PVC or PVC covers
Valmex embossed blind or in two-color Opatex PVC, the structure is leaning against and moved by a motor
radio-controlled electronic, which allows folding opening of the fabric up to maximum tension.
The pre-tensioned blackout PVC covers are available in the colors White, Gray and Vanilla;
the shells in
Valmex embossed blackout PVC are available in White, Ivory and Gray.
The cover is unique, with a particular drip and water channeling system, with the eaves
self-supporting front and anti-drip gasket supplied as standard.
The structure is designed for the installation of the lateral closing covers.
The BG 130 allows the coverage of underlying spaces up to 18 meters wide and 7 meters overhang,
placing the maximum number of 3 modules side by side, with a minimum footprint of the legs on the floor.
Minimum recommended inclination for correct operation 15%.
Maximum recommended dimensions:
1 module:
Width 600 cm
Projection 700 cm
2 modules:
Width cm 1200
Projection 700 cm
3 modules:
Width cm 1800
Projection 700 cm
