Openhouse BIOCLIMATICA

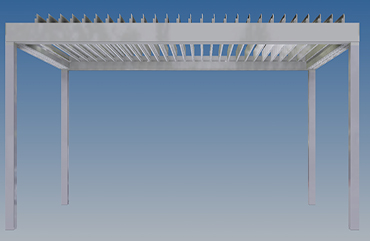

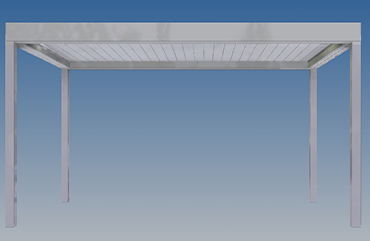

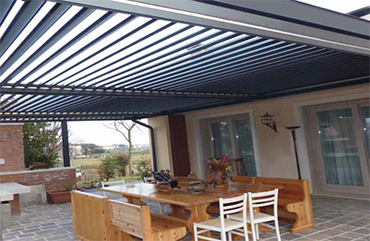

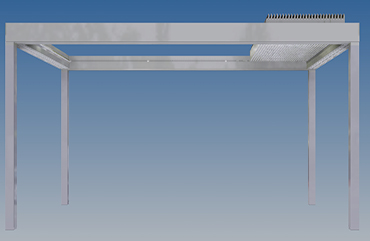

La BIOCLIMATICA ORIENTABILE ED IMPACCHETTABILE is a Pergola in aluminum, with a modern design
- Aluminum structure in White, Ivory, Brown colors,
Anthracite.

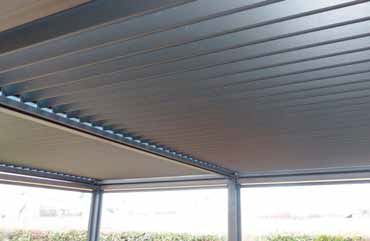

- Slats in painted aluminum 180.9 mm.
- Slat orientation from 0 ° to 90 °.
- double motor movement with remote control (standard)
- Minimum slope for water runoff 5% on the leaning model.
- Wind resistance class 6.
- Water discharge inside the legs.
- Protection from rain, sun and high resistance to atmospheric agents.
- Possibility to realize modular covers and to close the sides with Tcl or glass curtains.
- Wall mount; legs height 230 cm standard.
Recommended maximum size:
1 MODULE
Width cm 350
Projection 600 cm
LAMELLA 180.9 X 32
Width cm 400
Projection 600 cm
LAMELLA 186.5 X 55
2 MODULES
Width cm 700
Projection 600 cm
LAMELLA 180.9 X 32
Width cm 800
Projection cm 504
LAMELLA 186.5 X 55
3 MODULES
Width 1050 cm
Projection 600 cm
LAMELLA 180.9 X 32
