Openhouse FRANGISOLE

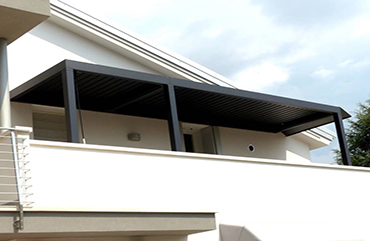

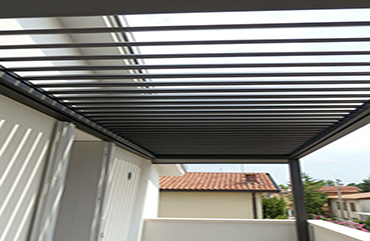

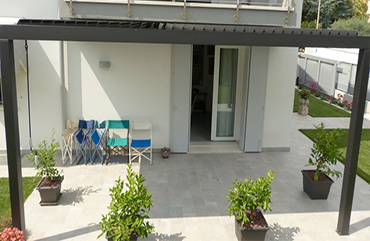

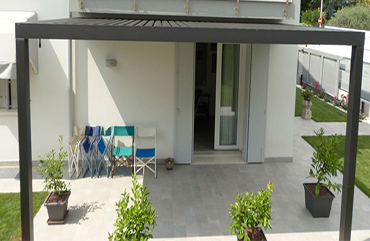

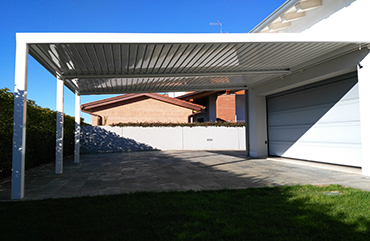

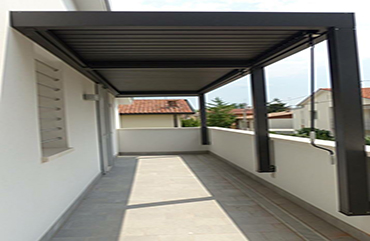

The ADJUSTABLE FRANGISOLE is an aluminum Pergola, with a modern design
- Aluminum structure in White, Ivory, Brown colors,
Anthracite.
- Slats in painted aluminum 180.9 mm.
- Slat orientation from 0 ° to 130 °.
- winch movement (standard) or motor (optional)
- Minimum slope for 5% water outflow.
- Wind resistance class 4.
- Water discharge inside the legs.
- Protection from rain, sun and high resistance to atmospheric agents.
- Possibility to realize modular covers and to close the sides with Tcl.
curtains
- Wall mount; legs height 230 cm.
Recommended maximum dimensions:
1 single module
Width cm 300 With standard lamella
Width cm 400 With reinforced slat
Projection 605 cm
2 modules side by side
Width 600 cm With standard slat
Width 800 cm With reinforced lamella
Projection 605 cm
3 modules side by side
Width cm 900 With standard lamella
Width 1200 cm With reinforced slat
Projection 605 cm
4 modules side by side
Width cm 1200 With standard slat
Width 1500 cm With reinforced lamella
Projection 605 cm
